Latent Planning by Workspace Recurrence: an Interpretability-Placed Implant, and What It Actually Buys

Revision draft, 2026-07-14. Base models: google/gemma-4-E2B-it and gemma-4-12B-it, both frozen. Hardware: DGX Spark + rented 2×/8×H100 nodes. Code, per-item logs, and pre-registrations: https://git.draic.info/nils/jspace (public). Statistics: results-loop/STATS.md.

Abstract

Interpretability work with an averaged-Jacobian lens ("J-lens") partitions a pretrained language model's depth into regimes, including a mid-depth workspace band that holds verbalizable, unspoken intermediate content. We retrofit recurrence onto this band in a frozen gemma-4-E2B: a 1.6M-parameter anchor-dominant merge adapter (0.03% of parameters) at the band entrance turns the non-self-map band into a stable recurrence, trained with self-generated, verifier-filtered supervision. Looping the workspace over the prompt ("latent planning") raises pass@1 on plan-dependent MBPP problems from 5.5% to 37.5±5.5% over five seeds — pooled across MBPP, HumanEval, and Rust/MultiPL-E, 4.2%→35.6% (McNemar p≈1.5e-10) — with zero visible tokens and zero decode cost. Placement is decisive, not convenient: the gain exists only at the lens-identified boundary (L14), collapsing below it, and KV-sharing structurally nulls entrances above it. Net of the untrained-merge perturbation floor (20.0%), the loop-specific effect survives paired testing (p=0.007).

A two-part attribution program then bounds the mechanism. First, the content is amortized, not computed: recurrence-free plan-distillation into the same adapter matches the loop, gains do not stack, and inference depth beyond k≈4 is flat — the state trajectory is an output-stable orbit, not a converging computation (half of prompts' states never converge at cos 0.9995 by k=8, with no difficulty gradient, so no convergence-based early exit falls out). Width rivals depth on code (trained pause registers: 36.4%); recurrence is needed where state must evolve (GSM8K carry, Blocksworld planning). Second, a pre-registered regime sweep spanning unconstrained learned recurrence (Huginn-style), spectrally constrained state maps (Parcae-style), per-iteration weights (Bae-style), and learned anchor coefficients shows that dynamical stability and substrate fidelity are independent dials: spectral radius governs convergence only (an unconstrained map drifts to ρ≈4.5 with no fit benefit; a constrained one stays at ρ≈0.3 with no fit cost — both lose 17 points of easy-item accuracy), while fidelity is governed by fixed-point location, causally isolated to one design choice — tying the input map to the anchor's convex complement, B=(1−α)I. Per-iteration weights strand the gain at trained depths; every regime buys the same hard-bucket gain (36–46%); no regime exceeds the amortization ceiling at this budget. The hand-tuned recipe is thus the measured optimum of its design space, not a lucky point in it. At 12B the anchor coefficient must become state-dependent (3.8K parameters) to preserve the substrate — the one dial that is task- and scale-dependent. Details and exact numbers: §1 and §3.

1. What this paper claims

(One model family, two scales: we state findings as empirical regularities, not laws.)

1. A placement regularity. The retrofit works if and only if the recurrence enters at the lens boundary. Entrances at L9–L13 (same adapter, data, curriculum) destroy overall accuracy (14–34% vs 52%) while recovering at most half the hard-bucket gain; entrance at L14 preserves overall and maximizes the gain (fig_placement). Entrances at L17/L24 are structurally null in this architecture: KV-sharing makes layers ≥15 reuse keys/values computed at ≤14, so k>0 is bit-identical to k=0 — a hazard for any retrofit method that skips the mechanistic check. Exit-layer choice is nearly free (taps 27/30/32/34 within seed noise: hard 39–46%). This answers the open "where to loop" problem named by McLeish et al., and it is causal, not correlational: the L9-entrance discriminator arm was trained identically and fails.

2. A verified, statistically solid capability gain on a narrow slice. Plan-dependent items (the model solves them with an explicit written plan but not directly): seed-mean 37.5±5.5 on MBPP (best 43.6%); pooled across three benchmarks, 4.2%→35.6%, p≈1.5e-10. Overall accuracy is statistically unchanged on MBPP (p=0.34) and improved on HumanEval transfer (58.5%→66.5%, p=0.011). Net of the untrained-merge floor (20.0% at n=55), the loop-specific effect is +17.5 points (seed mean) and survives the paired test (loop vs untrained merge on hard, p=0.007; distill vs untrained, p=0.0075).

3. A deflationary mechanism finding. The trained loop converges to a fixed point by k≈3–4 and behaves as amortized plan content, not iterative computation: plan-distillation into the identical architecture without recurrence matches it; stacking buys nothing (loop-training a distill-warmed adapter: 34.5%, below distill alone; running the distilled adapter in loop mode: drops to 20.0%); deeper k at inference is flat (k=8: 40.0%; output-stable despite residual state drift, §3.8). The recurrence is a training-time scaffold that lets the adapter find plan-shaped content — content that can equally be put there by distillation if plans are available.

4. A width-vs-depth pattern. Trained pause registers (width) capture most of the plan effect on code; recurrence (depth) is needed only where a state must evolve — on GSM8K generation-side carry beats registers, and on Blocksworld (pure planning, no world knowledge) the loop lifts hard-split plans 0%→43% at 2B where everything else fails. Plans are wide; execution is deep.

5. Honest economics. The implant's costs: ≈2.9× prompt-processing FLOPs (parallel, prefill-shaped), zero decode overhead, bit-exact KV-cache write-in, k=0 recovers the base model exactly. Its competition at comparable compute (accounting in Appendix A — FLOPs, wall-clock, and token budget do not rank the arms the same way): oracle best-of-3 (verifier-assisted) wins overall accuracy (57.8%, paired p=0.020 vs loop), but the deployable logprob-selected variant drops to 55.0% overall / 27.3% hard — indistinguishable from the latent arms overall and directionally behind on hard. A 50-token visible plan ties the hard bucket. The value proposition without a verifier: no visible tokens, no decode latency, and the hard-slice specialization (distill's 46% > budget-CoT's 40% > deployable sampling's 27%).

6. Scale transfers only with a state-dependent stability dial. At 12B the 2B-tuned constant α=0.3 collapses overall accuracy (72.6%→43.0%); the damage is present before adapter training (untrained-loop arm) and is not fixed by retuning α or LR. A per-position learned coefficient α=σ(w·[e;ŝ]+b) restores MBPP (overall 69.4%, hard 11.4%→27.3%) — but fails to rescue Blocksworld-12B and yields only a nominally positive, not significant GSM8K-12B overall delta (35.9%→36.7% at k=1, p=0.86).

2. Method

Locating the band. The lens reads residual state h at layer ℓ through the averaged Jacobian J̄_ℓ = E[∂h_final/∂h_ℓ] and the unembedding; depth regimes follow from what the readout tracks. On gemma-4-E2B: workspace ≈ L14–30 of 35; on 12B: L36–45 of 48.

Making the band a self-map. Feeding L30's output back to L14 collapses (out-space ≠ in-space). With e = L13's output (fixed anchor) and s the fed-back, norm-matched band output:

L14-in = (1−α)·e + α·ŝ + MLP([e ; ŝ]),   ŝ = s·‖e‖₂/‖s‖₂

(per-position L2 norms over the hidden dimension, computed in fp32)

α=0.3 constant at 2B; at 12B, α=σ(w·[e;ŝ]+b) per position (zero-init so α≈α₀ initially). MLP output zero-init: the untrained adapter is exactly the hand merge — stable, answer-preserving, content-holding.

Training. STaR-style self-labeling: items the frozen model solves only with an explicit plan/CoT are "hard", direct solves "easy", neither "drop". Cross-entropy on answer/code tokens of the direct prompt, model's own verified outputs as targets. Difficulty→depth curriculum (easy k=1, mixed k=2, hard k=2–4). The loop applies to the prompt span only; generated tokens run the plain path but attend to looped prompt states. Variants trained the same way: pause-N (N trained register tokens appended to the prompt, no recurrence), plan-distill (KL from the model's own plan-in-context distribution into the FF adapter), rung-2 (warm-started adapter + entrance-faded LoRA rank 8 on the band's first layers, loop-only via a global toggle), and stack arms (distill-warm + loop training; distilled adapter evaluated in loop mode).

Truncated backprop is certified by contraction. Recurrent-regime arms train with tail-only BPTT (gradients through the last 4 iterations; the no-grad prefix stores no activations, so memory is constant in depth). The truncation bias scales as ρ(A)^(T−tail) — at ρ=0.3 the discarded terms are ≤1%, making the cheap estimator essentially exact; at ρ≥1 it is dominated by what it discards. Stability, fixed-point convergence, valid tail gradients, and the convergence-halting exit signal are all the same dial.

Inference. Looped prompt states are causally independent of generated tokens: computed once at prefill, written into the KV cache by a hooked forward pass, generation native. Verified bit-identical to the slow path. Cost at k=4: ≈2.9× prefill FLOPs, zero decode overhead.

3. Results

Statistics throughout: Wilson 95% CIs; paired comparisons by exact McNemar; all headline arms evaluated on the full 500-item MBPP test split (hard bucket n=55), HumanEval n=164 (hard n=38), Rust/MultiPL-E n=154 (hard n=25), execution-verified.

Bucket definition, stated up front. Hard labels come from labeling runs of the frozen base model on the test items themselves (direct vs plan-in-context, greedy). This is legitimate for descriptive slicing but would be circular for selection — so no arm, hyperparameter, checkpoint, or loop depth was ever chosen using bucket results (pre-registered; PROTOCOL_UNIFIED.md items 1–2, 8). Because the bucket conditions on k=0 failure, regression-to-mean inflates any intervention's bucket score: the untrained merge already reaches ~18%, and we therefore report the loop-specific effect net of that floor wherever attribution is claimed. Robustness: redefining "hard" as labeled-hard ∧ k=0-fails-in-all-five-seeds (52/55 items) moves headline numbers <2 points; both definitions share the base model, which an independent difficulty proxy would not — we flag this as an open external check.

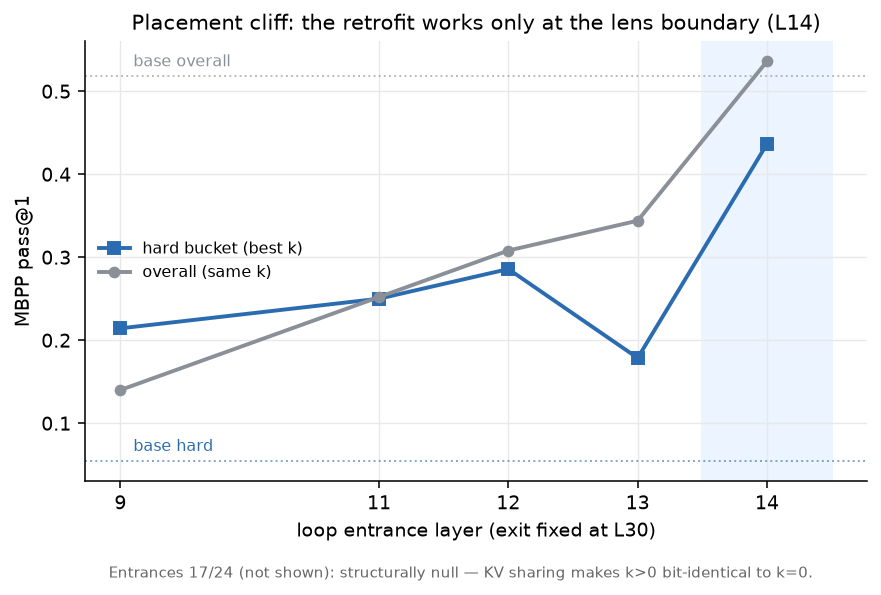

3.1 The placement regularity

Entrance-layer sweep with everything else fixed. L14 (lens boundary): hard 43.6%, overall 53.6%. L13: hard 17.9%, overall 34.4%. L9–L12: overall 14.0–30.8% (substrate destroyed). L17/L24 entrances: k>0 ≡ k=0 (KV sharing; verified bit-identical) — the 12B model has no shared-KV layers, making it the unconfounded replication. Exit sweep at fixed entrance (L27/30/32/34): hard 39.3–46.4%, within seed spread. The lens boundary is necessary; the exit is a free parameter — the completed five-point exit sweep (L23/27/30/32/34) spans hard 39.3–46.4% with L23 at the top (46.4% at k=2), all within seed spread.

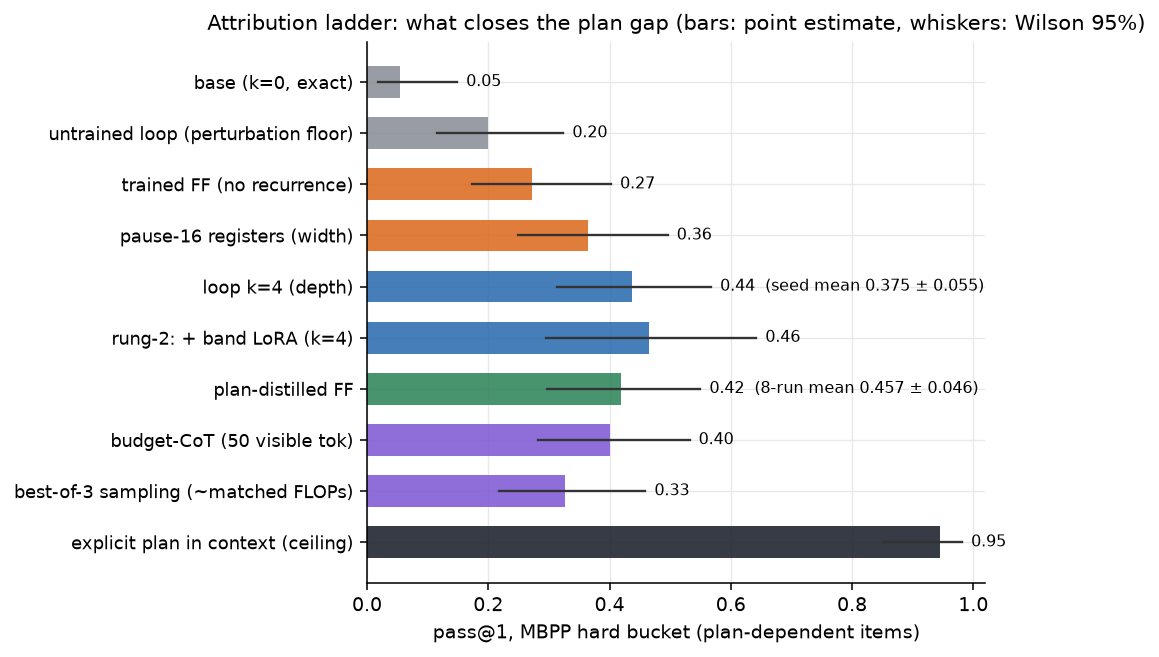

3.2 The attribution ladder

MBPP hard bucket (plan-dependent, n=55 unless noted):

arm	hard pass@1	overall
base (k=0, bit-exact)	5.5%	51.8%
untrained loop (α-merge only, k=4)	20.0%	50.2%
trained FF, no recurrence (k=1)	27.3%	53.6%
pause-16 registers (width)	36.4%	55.2%
trained loop k=4 (seed mean, 5 seeds)	37.5±5.5 (best 43.6)	53.6%
rung-2: + entrance-faded band LoRA (n=28)	42.9/46.4 (2 seeds)	51.2/52.4
plan-distilled FF (mean, 8 runs)	45.7±4.6 (best 49.1)	55.5%
budget-CoT (50 visible tokens)	40.0%	53.8%
best-of-3 sampling (≈matched FLOPs)	32.7%	57.2%
explicit plan in context (ceiling)	94.5%	59.0%

Significance structure (McNemar, STATS.md): loop vs base on hard, p=5.7e-6; every latent-arm-vs-latent-arm difference (loop vs distill, distill vs stack) is not significant at n=55; loop vs base overall is not significant on MBPP (p=0.34). The ladder's shape is reliable; its fine ordering is not.

Net accounting. The attribution-critical comparison is trained-loop vs untrained merge, not vs base: gross 5.5→37.5 (seed mean), of which the untrained perturbation floor is 20.0 points — the loop-specific net is +17.5 (seed mean) / +23.6 (best seed), and the paired item-level test is decisive (loop-only 17, untrained-only 4, p=0.007; distill likewise p=0.0075). The trained-FF control (27.3%) sits between floor and loop, not significantly above the floor (p=0.48): weights alone buy little without either recurrence or plan supervision. All controls now n=500 / hard n=55, same harness.

3.3 The decisive tests: nothing stacks

If the loop performed genuine iterative computation, plan-distilled content plus recurrence should compound. It does not:

• Distill-warm + loop training: hard 34.5% — below distill alone.
• Distilled adapter run in loop mode: hard 20.0%, overall 45.8% — looping degrades the distilled weights.
• Pause-16 + distill: hard 30.9% — no width stacking either.
• Inference depth beyond convergence: k=8 hard 40.0% ≈ k=4 (fixed point, cos(sₖ,sₖ₋₁)=1.000 by k≈3–4).

Reading: the recurrence is a training-time scaffold. The curriculum forces hard-item loss to be reducible only through the loop, and what the adapter learns to inject is plan-shaped content — the same content distillation installs directly when explicit plans are available. The loop's distinctive value is that it finds this content without plan supervision (STaR labels only say which items needed plans, not what the plans were).

3.4 Compute-matched honesty

At approximately matched FLOPs (Appendix A gives the accounting, separated into FLOPs, wall-clock, and token budget), the token-space comparison splits into two very different claims:

best-of-3 variant	overall	hard	vs loop (paired)
oracle (any-of-3 passes; needs a perfect verifier)	57.8%	34.5%	beats loop overall, p=0.020
deployable (highest mean logprob of 3)	55.0%	27.3%	n.s. overall (p=0.47); loop ahead on hard 16–7 (p=0.09)

The earlier draft's "sampling wins overall" was the oracle number — an upper bound requiring an external verifier that MBPP's own tests provide but a deployment does not. With the deployable selector (identical seeded samples, so the comparison is exact), best-of-3 is statistically indistinguishable from the latent arms overall, behind them directionally on the hard bucket, and pays ≈3× visible tokens and serial decode for it. Budget-CoT-50 remains the strongest honest token baseline (53.8% overall, hard 40.0%; per-item rerun 53.8/38.2) — and the paired tests confirm it is a tie with the latent arms on both axes (p≥0.69 vs loop and distill), at the price of 50 visible tokens and their serial decode latency. The implant's advantages at matched compute without a verifier: zero visible tokens, zero decode overhead, and the hard-slice crown under distillation (46%). Where a task does come with a cheap verifier, oracle-style sampling is the better overall-accuracy spend — both halves belong in the deployment picture.

3.5 Width vs depth, and the task boundary

Pause registers (width) reach 36.4% (16 registers; 8: 30.9%, 32: 34.5% — flat in N) on MBPP hard: static plan content fits in registers. GSM8K inverts the prompt-side result entirely (no variant beats the weights control prompt-side), but generation-side carry — recurrence across token steps — doubles the pause control on hard items: arithmetic's serial state evolves during the answer. Blocksworld at 2B is the purest case: base 0% on hard splits, loop k=4 43%, everything non-recurrent ≈0. The pattern: plans are wide; execution is deep. Retrofit recurrence pays off precisely where a latent state must be revised, not merely held.

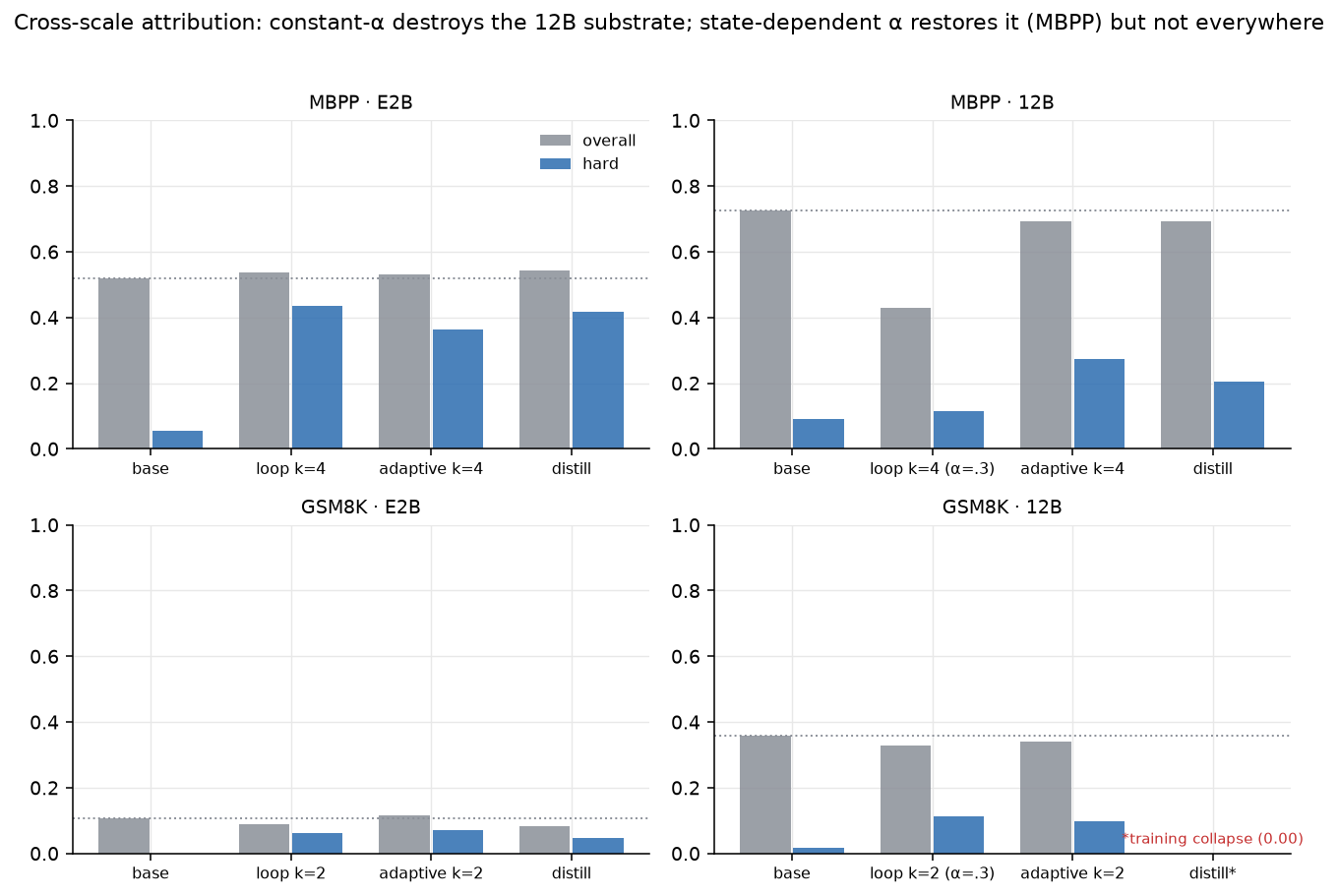

3.6 Scale: the stability dial

At 12B (no shared KV — unconfounded), constant α=0.3: overall collapses 72.6%→43.0% at k=4 while hard limps to 11.4%. The untrained-loop arm shows the damage precedes adapter training; α=0.15 and LR retuning do not fix it (47.6/52.6% overall). The state-dependent coefficient does, on MBPP: overall 69.4% (base 72.4%), hard 11.4%→27.3%. It does not rescue Blocksworld-12B (easy items destroyed at k=4; constant-α had reached hard 40% but also destroyed easy) and yields a nominally positive, not significant overall delta on GSM8K-12B (35.9→36.7 at k=1; paired McNemar on 32 discordant items, p=0.86; hard 1.6→10.6) — no arm anywhere in the program produced a statistically significant overall gain at 12B. Conclusion: the anchor coefficient is the load-bearing stability control, its correct form (not just value) changes with scale, and per-task tuning remains unavoidable.

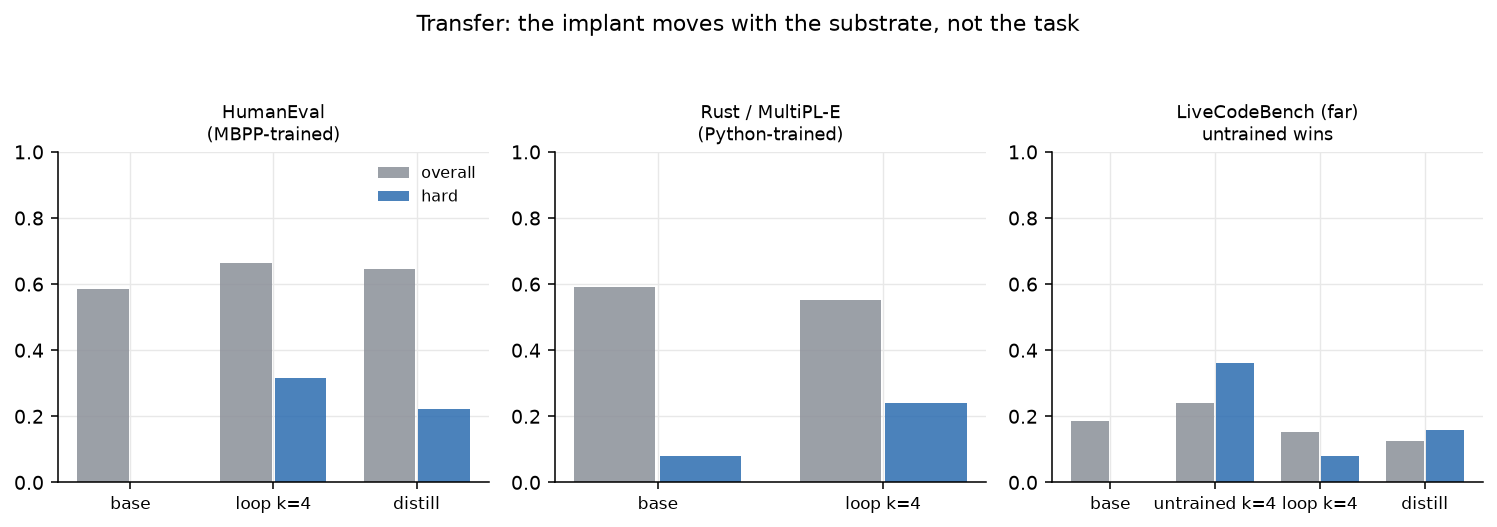

3.7 Transfer: substrate, not task

MBPP-trained implants applied unchanged: HumanEval overall 58.5%→66.5% (loop k=4, p=0.011 vs base; hard 0→31.6%). The decisive control: the untrained merge already reaches 64.6%, and trained-vs-untrained is not significant (paired McNemar at k=2, 9 vs 7 discordant, p=0.80). What transfers significantly is the merge perturbation itself, not the MBPP-trained content — the cleanest evidence that off-distribution value is substrate-shaped rather than task-memorized. (The transferred pause adapter reaches 66.5%, hard 38.9%, consistent with the same reading.)

LiveCodeBench sharpens this into a dissociation (150 newest stdin problems, Nov 2024–Apr 2025, execution-verified; no LCB training anywhere in the pipeline; base 18.7%):

arm (MBPP-trained where trained)	overall	hard (n=25)	vs base, paired
untrained merge, k=4	24.0%	36.0%	+, p=0.039
trained loop, k=4	15.3%	8.0%	−, p=0.23
distill FF, k=1	12.7%	16.0%	−, p=0.049

Far from distribution, the trained content is a liability (distill significantly hurts; untrained-vs-trained-loop is 14–1 discordant, p=0.001) while the untrained anchored recurrence significantly helps — the training-free regime of Lys et al. is the right choice off-distribution, and the amortized-content reading of §3.3 predicts exactly this: what the adapter learned is MBPP-shaped plan content, valuable where plans look like MBPP plans and harmful where they don't. Transfer ordering by distance: HumanEval (near) — trained ≈ untrained; Rust (mid) — trained helps the hard bucket; LCB (far) — untrained wins outright. Caveats: single seed per arm, hard n=25, one benchmark at the far end. Rust/MultiPL-E (Python-trained, different language, compile-run-verified): hard 8.0%→24.0% (p=0.125 at n=25 — directionally consistent, underpowered). Blocksworld MBPP-transfer: hard 0→14.3% (task-trained: 43%). Content transfers where the substrate's plan-representation overlaps; task-specific training still dominates.

3.8 Mechanism, verification, deployment

The trained loop takes a large first step (cos(s₁,s₀)=0.926 vs 0.977 untrained); accuracy and lens-sharpening plateau by k≈3–4. A population probe (n=250, state-cosine threshold 0.9995) shows the plateau is output-level: half the prompts' states are still drifting at 1e-3–1e-4 cosine scale at k=8 while generation is already depth-stable — an output-stable orbit rather than a literal state fixed point, with no difficulty gradient in state-convergence depth. Consequently, convergence-based early exit ("free ACT") does not fall out of the state trajectory; halting would need an output-level signal. P(latent concept) under the J-lens at the band exit rises 0.015→0.13 across iterations (~8× the untrained hold) — the lens that placed the implant also renders its silent content inspectable. The STaR labels train a free difficulty gate (route predicted-hard to k=4, else k=0); gate quality (19% precision at 64% recall) is the current ceiling on removing the easy-item perturbation tax. k=0 is the exact base model by construction — the implant is removable at token granularity.

General-capability panel (ARC-Challenge, WinoGrande, HellaSwag, MMLU; 800 items each, length-normalized MC likelihood via the chat template, loop applied to the context span). The safety answer is clean — k>0 does not damage general abilities:

arm	ARC-C	WinoGrande	HellaSwag	MMLU
base (k=0)	36.0	55.9	52.3	30.1
loop k=2 (MBPP adapter)	36.1	55.3	49.6	31.3
distill FF (MBPP)	41.8	56.6	57.0	31.8

The loop arm is flat within noise (largest move −2.6 on HellaSwag, unpaired n=800). The distill adapter nominally improves every benchmark (+5.8 ARC, +4.8 HellaSwag) — consistent with §3.7's finding that these implants carry a generically useful perturbation component, though MC-likelihood scoring and generation quality are different regimes (see the LCB result below before reading this as free capability).

3.9 Negative results with content

Mixed-task (code+math) training regressed both tasks at equal validation CE — CE parity does not predict generation parity, and validation-CE checkpoint selection fails likewise (fixed-step pre-commitment used instead; no checkpoint was selected on test or generation results). GSM8K distillation collapsed to empty outputs twice (E2B first attempt, 12B) on 3-token targets under KL-dominant loss; a CE-dominant retry at E2B trained but reached only hard 4.7%. Plan-distillation on GSM8K underperforms its MBPP twin even when training succeeds: consistent with §3.5, there is little static plan content for math to amortize.

4. Related work

McLeish et al. (arXiv:2511.07384) retrofit depth-recurrence via layer surgery + ~50B-token continued pretraining of all parameters; they name layer choice as an open problem — §3.1 is a causal answer. Their surgery needs a healing phase; our k=0 is exactly the base model. Lys et al. (arXiv:2602.14759) loop frozen models training-free; their finding that naive looping degrades while interpolation with the un-looped state rescues it is independent convergent evidence for anchor-dominance, and their setting is the untrained cell of our ladder (17.9%).

One mechanism, three regimes. All three works mix the fed-back state with an anchor from the un-looped computation. Lys et al.'s moving average η·h⁽⁰⁾+(1−η)·h⁽ᵗ⁾ is an untrained anchor coefficient; our (1−α)e + α·ŝ + MLP is its trained analogue; McLeish et al.'s input injection is the fully-learned limit. The 12B episode closes the loop on this unification: the coefficient is the stability dial, naive looping is its α→1 collapse limit, and our scale failure + state-dependent fix show the dial must itself become a function of the state as models grow. Our stacking results add a caution for the whole family: if retrofitted recurrence content is amortizable (§3.3), some of the family's gains may be reproducible by distillation without inference-time recurrence — a control neither bracket paper runs.

Earlier lineage: Universal Transformers; DEQ; Huginn (2502.05171); Mixture-of-Recursions (2507.10524); Relaxed Recursive Transformers (2410.20672); Coconut; pause tokens (Goyal et al.) — whose trained variant proved a genuine rival, not a strawman (§3.2, §3.5).

Saunshi et al. (2025) argue looped transformers trade composition against memorization: looping buys iterative reasoning, not fact storage. Our results reproduce this axis within one frozen model: k>0 moves only the plan-dependent (compositional) slice, leaves recall-flavored MC benchmarks flat (§3.8), and the content-injecting distill arm — not the loop — is what nudges knowledge benchmarks up. Their looping-based regularization (loop harder on reasoning, relax for retrieval) has an inference-time analogue in our difficulty gate: route predicted plan-dependent prompts to k=4 and everything else to k=0, which is the exact base model. Retrofit looping makes the composition/memorization trade a per-prompt routing decision instead of a pretraining commitment.

What remains distinct here: interpretability-derived placement with causal validation; a fully frozen base with bit-exact k=0 and zero-decode-cost KV write-in; the complete attribution ladder including compute-matched token-space baselines and stacking tests; the width/depth task pattern; and the amortizability finding itself.

5. Limitations

One model family (gemma-4), two scales, three task families. Hard buckets are small (n=55/38/25); within-ladder orderings are not individually significant, and only the pooled hard effect and the HumanEval overall gain survive multiple-comparison scrutiny. Bucket membership derives from greedy labeling runs (consensus-k0 robustness check moves numbers <2 points, but both checks share the base model; an independent 12B-relabeling proxy is running). A third architecture family was not run; rung-2 was not run at 12B. LiveCodeBench: single seed per arm, hard n=25, stdin-judged problems only, and its newest shard (Apr 2025) is newer than MBPP by years but not provably past the base model's undisclosed training cutoff — we claim recency, not proven non-contamination. The capability panel is MC-likelihood, not generation; its "no damage" answer does not extend to generation quality off-distribution (LCB shows trained arms do hurt there). The easy-item perturbation tax persists wherever the gate's precision fails. MBPP/GSM8K likely overlap pretraining data; both arms share contamination, and memorized items land in the easy bucket, but bucket composition is contamination-sensitive. The capability panel (§3.8) is pending; until it lands, off-task effects of k>0 are unmeasured. The Blocksworld-12B and GSM8K-12B failures mean the adaptive-α fix is demonstrated on one task at one scale, not established as a general recipe.

6. Conclusion

The experiment this program set out to run — can an interpretability lens tell you where to install recurrence in a frozen model, and does it work? — has a clean answer: yes, and the placement is causally load-bearing. The more interesting answer is what the recurrence turned out to be: not a reasoning engine, but a remarkably cheap way to make a frozen model amortize its own planning into 0.03% of extra parameters, with a training-time loop as scaffold and an inference-time loop that is optional once the content exists. The practical recipe that survives all controls: lens-locate the band; anchor-merge with a state-dependent coefficient; label difficulty by STaR; distill plans if you have them, loop if you don't; gate by predicted difficulty; keep k=0 as the exact base model. What it buys: the plan-dependent slice at zero tokens and zero decode cost. What it does not buy: overall accuracy beyond what matched-compute sampling already delivers. Both halves of that sentence are the contribution.

Appendix A: compute accounting (FLOPs / wall-clock / tokens, separated)

Let P = prompt tokens, G = generated tokens, c = FLOPs per token per full forward pass. The band is 17 of 35 decoder layers at E2B (fraction f≈0.486) and 10 of 48 at 12B (f≈0.208).

Latent loop, k=4, prompt-only. Prefill: 1 base pass + 4 band passes over prompt positions = (1+4f)·cP ≈ 2.94·cP at E2B (1.83× at 12B — the overhead shrinks with scale because lens bands grow sublinearly). Decode: exactly cG (looped states written to the KV cache once; bit-exactness verified). Wall-clock: prefill is compute-bound and position-parallel, but the k iterations are serial — prefill latency ≈2.9×, typically a small fraction of end-to-end latency for G≫0. Visible tokens: +0.

Best-of-3 sampling. FLOPs: with shared prompt prefill (favorable accounting), cP + 3·cG ≈ cP + 3cG; without sharing 3c(P+G). For MBPP (P≈150–300, G≈150–220), the extra FLOPs vs direct (≈2cG) are of the same order as the loop's extra (≈1.94cP) — hence "≈matched". Wall-clock: 3×G serial bandwidth-bound decode steps (or 3 parallel decode streams at 3× memory); strictly worse latency than the loop unless parallelized. Visible tokens: ≈3× (two discarded candidates). Requires a verifier or selector to pick among samples for the overall win we report (we use any-pass, an upper bound — see §3.4 caveat).

Budget-CoT (50-token plan). FLOPs: ≈c(P+G+50) plus the plan tokens' KV in context for the remainder — the cheapest arm in FLOPs. Wall-clock: +50 serial decode steps before answer tokens start (worst first-token latency). Visible tokens: +50.

Summary: no single scalar makes these three arms "equal"; the loop dominates on tokens and decode latency, budget-CoT on FLOPs, best-of-3 on overall accuracy. §3.4's "≈matched FLOPs" refers to the extra-FLOPs order-of-magnitude equivalence above, not exact equality; the honest statement is the three-way trade-off, and we report all three axes.
