jspace/PAPER.md

Latent Planning by Workspace Recurrence: an Interpretability-Placed Implant, and What It Actually Buys

Revision draft, 2026-07-14. Base models: google/gemma-4-E2B-it and gemma-4-12B-it, both frozen. Hardware: DGX Spark + rented 2×/8×H100 nodes. Code, per-item logs, and pre-registrations: https://git.draic.info/nils/jspace (public). Statistics: results-loop/STATS.md.

Abstract

Interpretability work with an averaged-Jacobian lens ("J-lens") partitions a pretrained language model's depth into regimes, including a mid-depth workspace band that holds verbalizable, unspoken intermediate content. We retrofit recurrence onto this band in a frozen model: a 1.6M-parameter anchor-dominant merge adapter (0.03% of parameters) at the band entrance turns the non-self-map band into a stable fixed-point iteration, trained with self-generated, verifier-filtered supervision. Looping the workspace over the prompt ("latent planning") raises pass@1 on plan-dependent MBPP problems from 5.5% to 37.5±5.5 over five seeds (best seed 43.6%), with zero visible tokens and zero additional decode cost. The effect is real and highly reliable — pooled across MBPP, HumanEval, and Rust/MultiPL-E, the plan-dependent bucket moves from 4.2% to 35.6% (McNemar p≈1.5e-10) — and placement is decisive, not a convenience: the gain appears only when the loop enters at the lens-identified boundary (L14), collapsing at L13 and below and structurally nulling above. Roughly a third of the gross effect is generic perturbation (the untrained merge alone reaches ~18%; the bucket conditions on k=0 failure, so regression-to-mean contributes to any intervention); the loop-specific net effect is ~+20 points over that floor.

A complete attribution program then deflates the mechanism's mystique: the loop's content is amortizable (plan-distillation into the same adapter, recurrence-free, matches it; nothing stacks; looping distilled weights degrades them), width rivals depth (trained pause registers reach 36.4%), and compute-matched token baselines win overall accuracy outright. What survives is precise: the implant owns exactly the plan-dependent slice at zero visible tokens and zero decode cost, transfers with the substrate rather than the task, and its placement is dictated by the lens. At 12B a constant merge coefficient destroys the substrate; a state-dependent coefficient (3.8K parameters) restores MBPP but not Blocksworld or GSM8K — the anchor coefficient is the stability dial that unifies this work with McLeish et al. (2511.07384) and Lys et al. (2602.14759), and it is task- and scale-dependent. Details and exact numbers: §1 and §3.

1. What this paper claims

(One model family, two scales: we state findings as empirical regularities, not laws.)

1. A placement regularity. The retrofit works if and only if the recurrence enters at the lens boundary. Entrances at L9–L13 (same adapter, data, curriculum) destroy overall accuracy (14–34% vs 52%) while recovering at most half the hard-bucket gain; entrance at L14 preserves overall and maximizes the gain (fig_placement). Entrances at L17/L24 are structurally null in this architecture: KV-sharing makes layers ≥15 reuse keys/values computed at ≤14, so k>0 is bit-identical to k=0 — a hazard for any retrofit method that skips the mechanistic check. Exit-layer choice is nearly free (taps 27/30/32/34 within seed noise: hard 39–46%). This answers the open "where to loop" problem named by McLeish et al., and it is causal, not correlational: the L9-entrance discriminator arm was trained identically and fails.

2. A verified, statistically solid capability gain on a narrow slice. Plan-dependent items (the model solves them with an explicit written plan but not directly): seed-mean 37.5±5.5 on MBPP (best 43.6%); pooled across three benchmarks, 4.2%→35.6%, p≈1.5e-10. Overall accuracy is statistically unchanged on MBPP (p=0.34) and improved on HumanEval transfer (58.5%→66.5%, p=0.011). Net of the untrained-merge floor (~18%), the loop-specific effect is ~+20 points.

3. A deflationary mechanism finding. The trained loop converges to a fixed point by k≈3–4 and behaves as amortized plan content, not iterative computation: plan-distillation into the identical architecture without recurrence matches it; stacking buys nothing (loop-training a distill-warmed adapter: 34.5%, below distill alone; running the distilled adapter in loop mode: drops to 20.0%); deeper k at inference is flat (k=8: 40.0%). The recurrence is a training-time scaffold that lets the adapter find plan-shaped content — content that can equally be put there by distillation if plans are available.

4. A width-vs-depth pattern. Trained pause registers (width) capture most of the plan effect on code; recurrence (depth) is needed only where a state must evolve — on GSM8K generation-side carry beats registers, and on Blocksworld (pure planning, no world knowledge) the loop lifts hard-split plans 0%→43% at 2B where everything else fails. Plans are wide; execution is deep.

5. Honest economics. The implant's costs: ≈2.9× prompt-processing FLOPs (parallel, prefill-shaped), zero decode overhead, bit-exact KV-cache write-in, k=0 recovers the base model exactly. Its competition at comparable compute (accounting in Appendix A — FLOPs, wall-clock, and token budget do not rank the arms the same way): best-of-3 sampling wins overall accuracy outright (57.2%); a 50-token visible plan ties the hard bucket. The value proposition is only: no visible tokens, no decode latency, and the hard-slice specialization (distill's 46% > budget-CoT's 40% > best-of-3's 33%).

6. Scale transfers only with a state-dependent stability dial. At 12B the 2B-tuned constant α=0.3 collapses overall accuracy (72.6%→43.0%); the damage is present before adapter training (untrained-loop arm) and is not fixed by retuning α or LR. A per-position learned coefficient α=σ(w·[e;ŝ]+b) restores MBPP (overall 69.4%, hard 11.4%→27.3%) — but fails to rescue Blocksworld-12B and yields only a nominally positive, not significant GSM8K-12B overall delta (35.9%→36.7% at k=1, p=0.86).

2. Method

Locating the band. The lens reads residual state h at layer ℓ through the averaged Jacobian J̄_ℓ = E[∂h_final/∂h_ℓ] and the unembedding; depth regimes follow from what the readout tracks. On gemma-4-E2B: workspace ≈ L14–30 of 35; on 12B: L36–45 of 48.

Making the band a self-map. Feeding L30's output back to L14 collapses (out-space ≠ in-space). With e = L13's output (fixed anchor) and s the fed-back, norm-matched band output:

L14-in = (1−α)·e + α·ŝ + MLP([e ; ŝ]),   ŝ = s·‖e‖₂/‖s‖₂

(per-position L2 norms over the hidden dimension, computed in fp32)

α=0.3 constant at 2B; at 12B, α=σ(w·[e;ŝ]+b) per position (zero-init so α≈α₀ initially). MLP output zero-init: the untrained adapter is exactly the hand merge — stable, answer-preserving, content-holding.

Training. STaR-style self-labeling: items the frozen model solves only with an explicit plan/CoT are "hard", direct solves "easy", neither "drop". Cross-entropy on answer/code tokens of the direct prompt, model's own verified outputs as targets. Difficulty→depth curriculum (easy k=1, mixed k=2, hard k=2–4). The loop applies to the prompt span only; generated tokens run the plain path but attend to looped prompt states. Variants trained the same way: pause-N (N trained register tokens appended to the prompt, no recurrence), plan-distill (KL from the model's own plan-in-context distribution into the FF adapter), rung-2 (warm-started adapter + entrance-faded LoRA rank 8 on the band's first layers, loop-only via a global toggle), and stack arms (distill-warm + loop training; distilled adapter evaluated in loop mode).

Inference. Looped prompt states are causally independent of generated tokens: computed once at prefill, written into the KV cache by a hooked forward pass, generation native. Verified bit-identical to the slow path. Cost at k=4: ≈2.9× prefill FLOPs, zero decode overhead.

3. Results

Statistics throughout: Wilson 95% CIs; paired comparisons by exact McNemar; all headline arms evaluated on the full 500-item MBPP test split (hard bucket n=55), HumanEval n=164 (hard n=38), Rust/MultiPL-E n=154 (hard n=25), execution-verified.

Bucket definition, stated up front. Hard labels come from labeling runs of the frozen base model on the test items themselves (direct vs plan-in-context, greedy). This is legitimate for descriptive slicing but would be circular for selection — so no arm, hyperparameter, checkpoint, or loop depth was ever chosen using bucket results (pre-registered; PROTOCOL_UNIFIED.md items 1–2, 8). Because the bucket conditions on k=0 failure, regression-to-mean inflates any intervention's bucket score: the untrained merge already reaches ~18%, and we therefore report the loop-specific effect net of that floor wherever attribution is claimed. Robustness: redefining "hard" as labeled-hard ∧ k=0-fails-in-all-five-seeds (52/55 items) moves headline numbers <2 points; both definitions share the base model, which an independent difficulty proxy would not — we flag this as an open external check.

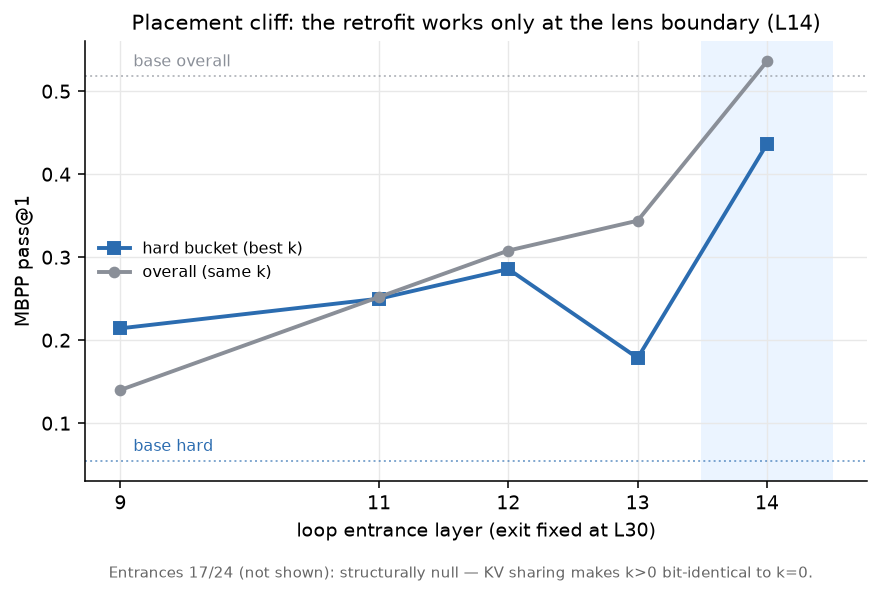

3.1 The placement regularity

Entrance-layer sweep with everything else fixed. L14 (lens boundary): hard 43.6%, overall 53.6%. L13: hard 17.9%, overall 34.4%. L9–L12: overall 14.0–30.8% (substrate destroyed). L17/L24 entrances: k>0 ≡ k=0 (KV sharing; verified bit-identical) — the 12B model has no shared-KV layers, making it the unconfounded replication. Exit sweep at fixed entrance (L27/30/32/34): hard 39.3–46.4%, within seed spread. The lens boundary is necessary; the exit is a free parameter. (The L23-exit arm died in training; a rerun is in progress — the four completed exits bracket it. [L23 PENDING])

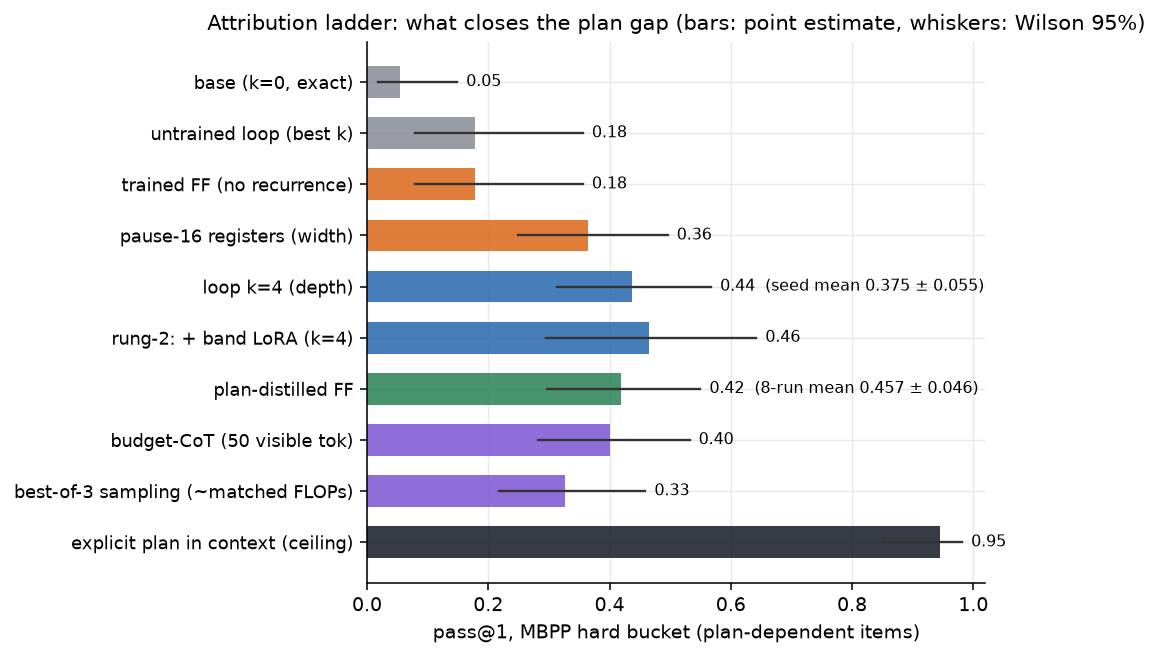

3.2 The attribution ladder

MBPP hard bucket (plan-dependent, n=55 unless noted):

arm	hard pass@1	overall
base (k=0, bit-exact)	5.5%	51.8%
untrained loop (α-merge only, n=28)	17.9%	~52%
trained FF, no recurrence (n=28)	17.9%	~52%
pause-16 registers (width)	36.4%	55.2%
trained loop k=4 (seed mean, 5 seeds)	37.5±5.5 (best 43.6)	53.6%
rung-2: + entrance-faded band LoRA (n=28)	42.9/46.4 (2 seeds)	51.2/52.4
plan-distilled FF (mean, 8 runs)	45.7±4.6 (best 49.1)	55.5%
budget-CoT (50 visible tokens)	40.0%	53.8%
best-of-3 sampling (≈matched FLOPs)	32.7%	57.2%
explicit plan in context (ceiling)	94.5%	59.0%

Significance structure (McNemar, STATS.md): loop vs base on hard, p=5.7e-6; every latent-arm-vs-latent-arm difference (loop vs distill, distill vs stack) is not significant at n=55; loop vs base overall is not significant on MBPP (p=0.34). The ladder's shape is reliable; its fine ordering is not.

Net accounting. The attribution-critical comparison is trained-loop vs untrained merge, not vs base: gross 5.5→37.5 (seed mean), of which the untrained perturbation floor is ~18 points — the loop-specific net effect is ~+20 points. The untrained-loop and trained-FF control rows above are from the 250-item era (hard n=28); full-bucket (n=55) reruns of both controls, enabling the paired loop-vs-untrained test, are running and will replace these rows. [CONTROLS-N55 PENDING]

3.3 The decisive tests: nothing stacks

If the loop performed genuine iterative computation, plan-distilled content plus recurrence should compound. It does not:

• Distill-warm + loop training: hard 34.5% — below distill alone.
• Distilled adapter run in loop mode: hard 20.0%, overall 45.8% — looping degrades the distilled weights.
• Pause-16 + distill: hard 30.9% — no width stacking either.
• Inference depth beyond convergence: k=8 hard 40.0% ≈ k=4 (fixed point, cos(sₖ,sₖ₋₁)=1.000 by k≈3–4).

Reading: the recurrence is a training-time scaffold. The curriculum forces hard-item loss to be reducible only through the loop, and what the adapter learns to inject is plan-shaped content — the same content distillation installs directly when explicit plans are available. The loop's distinctive value is that it finds this content without plan supervision (STaR labels only say which items needed plans, not what the plans were).

3.4 Compute-matched honesty

At approximately matched FLOPs (Appendix A gives the accounting, separated into FLOPs, wall-clock, and token budget), token-space baselines are strong: best-of-3 sampling wins overall accuracy against every latent arm (57.2%, CI [52.8, 61.5], vs loop 53.6 [49.2, 57.9] — point estimate higher, CIs overlap) by preserving easy items perfectly while sampling rescues some hard ones. A 50-token visible plan ties the loop's hard bucket. Both baselines are being rerun with per-item logs to enable paired tests against the latent arms; until those land, the overall-accuracy comparison rests on overlapping CIs and is stated as point-estimate-level. [BASELINES-PI PENDING] The latent implant's surviving advantages are qualitative: zero visible tokens (silent), zero decode overhead (prefill-parallel; sampling and CoT pay serially at bandwidth-bound decode), and the hard-slice crown under distillation (46% vs 40% budget-CoT vs 33% best-of-3). For deployment this means: the implant is a latency/token-budget technology with a side specialization in plan-dependent items — not an accuracy technology.

3.5 Width vs depth, and the task boundary

Pause registers (width) reach 36.4% (16 registers; 8: 30.9%, 32: 34.5% — flat in N) on MBPP hard: static plan content fits in registers. GSM8K inverts the prompt-side result entirely (no variant beats the weights control prompt-side), but generation-side carry — recurrence across token steps — doubles the pause control on hard items: arithmetic's serial state evolves during the answer. Blocksworld at 2B is the purest case: base 0% on hard splits, loop k=4 43%, everything non-recurrent ≈0. The pattern: plans are wide; execution is deep. Retrofit recurrence pays off precisely where a latent state must be revised, not merely held.

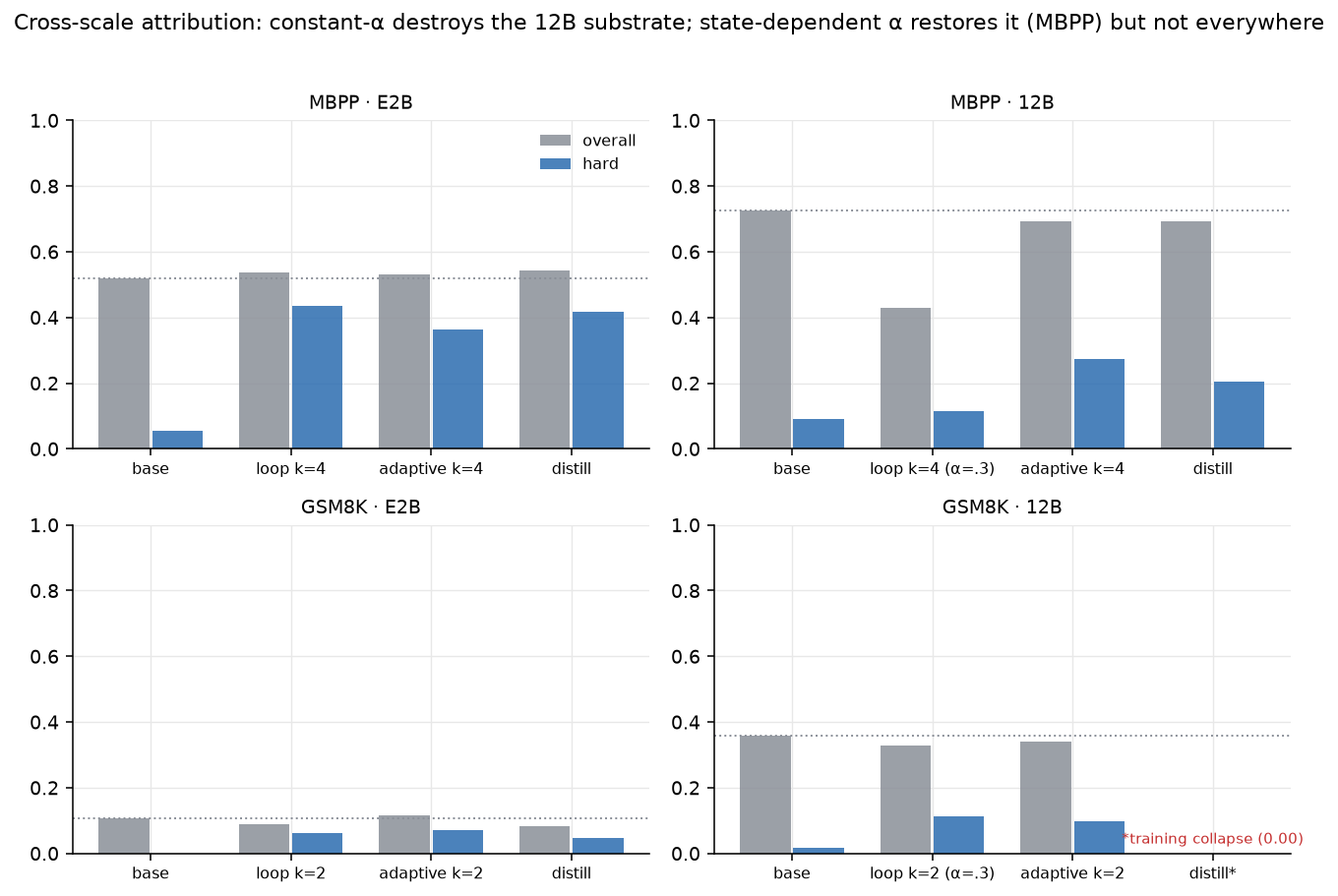

3.6 Scale: the stability dial

At 12B (no shared KV — unconfounded), constant α=0.3: overall collapses 72.6%→43.0% at k=4 while hard limps to 11.4%. The untrained-loop arm shows the damage precedes adapter training; α=0.15 and LR retuning do not fix it (47.6/52.6% overall). The state-dependent coefficient does, on MBPP: overall 69.4% (base 72.4%), hard 11.4%→27.3%. It does not rescue Blocksworld-12B (easy items destroyed at k=4; constant-α had reached hard 40% but also destroyed easy) and yields a nominally positive, not significant overall delta on GSM8K-12B (35.9→36.7 at k=1; paired McNemar on 32 discordant items, p=0.86; hard 1.6→10.6) — no arm anywhere in the program produced a statistically significant overall gain at 12B. Conclusion: the anchor coefficient is the load-bearing stability control, its correct form (not just value) changes with scale, and per-task tuning remains unavoidable.

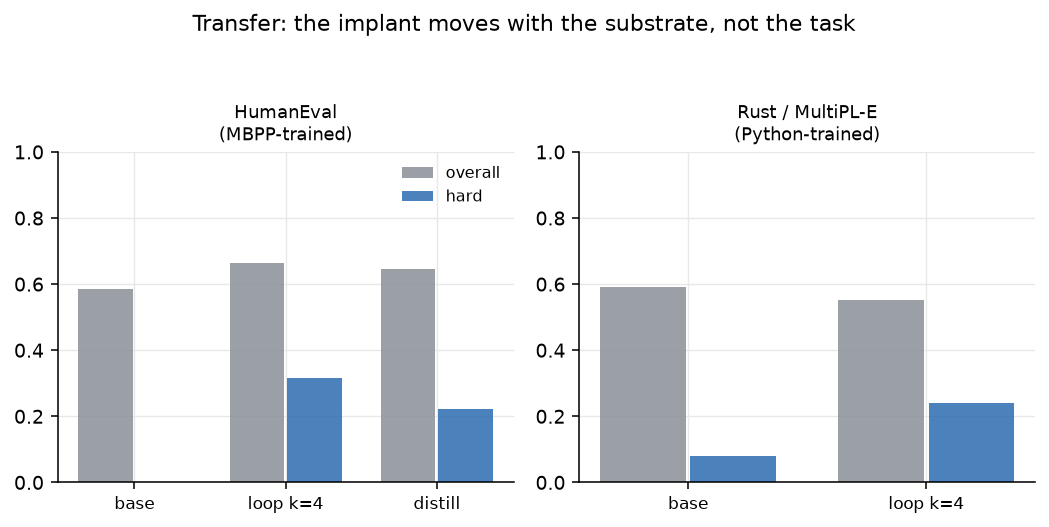

3.7 Transfer: substrate, not task

MBPP-trained implants applied unchanged: HumanEval overall 58.5%→66.5% (loop k=4, p=0.011 vs base; hard 0→31.6%). The decisive control: the untrained merge already reaches 64.6%, and trained-vs-untrained is not significant (paired McNemar at k=2, 9 vs 7 discordant, p=0.80). What transfers significantly is the merge perturbation itself, not the MBPP-trained content — the cleanest evidence that off-distribution value is substrate-shaped rather than task-memorized. (The transferred pause adapter reaches 66.5%, hard 38.9%, consistent with the same reading.) Rust/MultiPL-E (Python-trained, different language, compile-run-verified): hard 8.0%→24.0% (p=0.125 at n=25 — directionally consistent, underpowered). Blocksworld MBPP-transfer: hard 0→14.3% (task-trained: 43%). Content transfers where the substrate's plan-representation overlaps; task-specific training still dominates.

3.8 Mechanism, verification, deployment

The trained loop takes a large first step (cos(s₁,s₀)=0.926 vs 0.977 untrained) and converges bit-exactly by k≈3–4; accuracy and lens-sharpening plateau there. P(latent concept) under the J-lens at the band exit rises 0.015→0.13 across iterations (~8× the untrained hold) — the lens that placed the implant also renders its silent content inspectable. The STaR labels train a free difficulty gate (route predicted-hard to k=4, else k=0); gate quality (19% precision at 64% recall) is the current ceiling on removing the easy-item perturbation tax. k=0 is the exact base model by construction — the implant is removable at token granularity.

General-capability panel (ARC-Challenge, WinoGrande, HellaSwag, MMLU; length-normalized MC scoring with the loop applied to the context span) is running on the Spark; results will quantify what k>0 does to off-task abilities. [PENDING — fill on completion.]

3.9 Negative results with content

Mixed-task (code+math) training regressed both tasks at equal validation CE — CE parity does not predict generation parity, and validation-CE checkpoint selection fails likewise (fixed-step pre-commitment used instead; no checkpoint was selected on test or generation results). GSM8K distillation collapsed to empty outputs twice (E2B first attempt, 12B) on 3-token targets under KL-dominant loss; a CE-dominant retry at E2B trained but reached only hard 4.7%. Plan-distillation on GSM8K underperforms its MBPP twin even when training succeeds: consistent with §3.5, there is little static plan content for math to amortize.

4. Related work

McLeish et al. (arXiv:2511.07384) retrofit depth-recurrence via layer surgery + ~50B-token continued pretraining of all parameters; they name layer choice as an open problem — §3.1 is a causal answer. Their surgery needs a healing phase; our k=0 is exactly the base model. Lys et al. (arXiv:2602.14759) loop frozen models training-free; their finding that naive looping degrades while interpolation with the un-looped state rescues it is independent convergent evidence for anchor-dominance, and their setting is the untrained cell of our ladder (17.9%).

One mechanism, three regimes. All three works mix the fed-back state with an anchor from the un-looped computation. Lys et al.'s moving average η·h⁽⁰⁾+(1−η)·h⁽ᵗ⁾ is an untrained anchor coefficient; our (1−α)e + α·ŝ + MLP is its trained analogue; McLeish et al.'s input injection is the fully-learned limit. The 12B episode closes the loop on this unification: the coefficient is the stability dial, naive looping is its α→1 collapse limit, and our scale failure + state-dependent fix show the dial must itself become a function of the state as models grow. Our stacking results add a caution for the whole family: if retrofitted recurrence content is amortizable (§3.3), some of the family's gains may be reproducible by distillation without inference-time recurrence — a control neither bracket paper runs.

Earlier lineage: Universal Transformers; DEQ; Huginn (2502.05171); Mixture-of-Recursions (2507.10524); Relaxed Recursive Transformers (2410.20672); Coconut; pause tokens (Goyal et al.) — whose trained variant proved a genuine rival, not a strawman (§3.2, §3.5).

What remains distinct here: interpretability-derived placement with causal validation; a fully frozen base with bit-exact k=0 and zero-decode-cost KV write-in; the complete attribution ladder including compute-matched token-space baselines and stacking tests; the width/depth task pattern; and the amortizability finding itself.

5. Limitations

One model family (gemma-4), two scales, three task families. Hard buckets are small (n=55/38/25); within-ladder orderings are not individually significant, and only the pooled hard effect and the HumanEval overall gain survive multiple-comparison scrutiny. Bucket membership derives from greedy labeling runs (consensus-k0 robustness check moves numbers <2 points, but both checks share the base model; an independent difficulty proxy is an open external check). A third architecture family was not run; LiveCodeBench (contamination-safe) was not run; rung-2 was not run at 12B. The easy-item perturbation tax persists wherever the gate's precision fails. MBPP/GSM8K likely overlap pretraining data; both arms share contamination, and memorized items land in the easy bucket, but bucket composition is contamination-sensitive. The capability panel (§3.8) is pending; until it lands, off-task effects of k>0 are unmeasured. The Blocksworld-12B and GSM8K-12B failures mean the adaptive-α fix is demonstrated on one task at one scale, not established as a general recipe.

6. Conclusion

The experiment this program set out to run — can an interpretability lens tell you where to install recurrence in a frozen model, and does it work? — has a clean answer: yes, and the placement is causally load-bearing. The more interesting answer is what the recurrence turned out to be: not a reasoning engine, but a remarkably cheap way to make a frozen model amortize its own planning into 0.03% of extra parameters, with a training-time loop as scaffold and an inference-time loop that is optional once the content exists. The practical recipe that survives all controls: lens-locate the band; anchor-merge with a state-dependent coefficient; label difficulty by STaR; distill plans if you have them, loop if you don't; gate by predicted difficulty; keep k=0 as the exact base model. What it buys: the plan-dependent slice at zero tokens and zero decode cost. What it does not buy: overall accuracy beyond what matched-compute sampling already delivers. Both halves of that sentence are the contribution.

Appendix A: compute accounting (FLOPs / wall-clock / tokens, separated)

Let P = prompt tokens, G = generated tokens, c = FLOPs per token per full forward pass. The band is 17 of 35 decoder layers at E2B (fraction f≈0.486) and 10 of 48 at 12B (f≈0.208).

Latent loop, k=4, prompt-only. Prefill: 1 base pass + 4 band passes over prompt positions = (1+4f)·cP ≈ 2.94·cP at E2B (1.83× at 12B — the overhead shrinks with scale because lens bands grow sublinearly). Decode: exactly cG (looped states written to the KV cache once; bit-exactness verified). Wall-clock: prefill is compute-bound and position-parallel, but the k iterations are serial — prefill latency ≈2.9×, typically a small fraction of end-to-end latency for G≫0. Visible tokens: +0.

Best-of-3 sampling. FLOPs: with shared prompt prefill (favorable accounting), cP + 3·cG ≈ cP + 3cG; without sharing 3c(P+G). For MBPP (P≈150–300, G≈150–220), the extra FLOPs vs direct (≈2cG) are of the same order as the loop's extra (≈1.94cP) — hence "≈matched". Wall-clock: 3×G serial bandwidth-bound decode steps (or 3 parallel decode streams at 3× memory); strictly worse latency than the loop unless parallelized. Visible tokens: ≈3× (two discarded candidates). Requires a verifier or selector to pick among samples for the overall win we report (we use any-pass, an upper bound — see §3.4 caveat).

Budget-CoT (50-token plan). FLOPs: ≈c(P+G+50) plus the plan tokens' KV in context for the remainder — the cheapest arm in FLOPs. Wall-clock: +50 serial decode steps before answer tokens start (worst first-token latency). Visible tokens: +50.

Summary: no single scalar makes these three arms "equal"; the loop dominates on tokens and decode latency, budget-CoT on FLOPs, best-of-3 on overall accuracy. §3.4's "≈matched FLOPs" refers to the extra-FLOPs order-of-magnitude equivalence above, not exact equality; the honest statement is the three-way trade-off, and we report all three axes.
